Fig. 1
Download original image

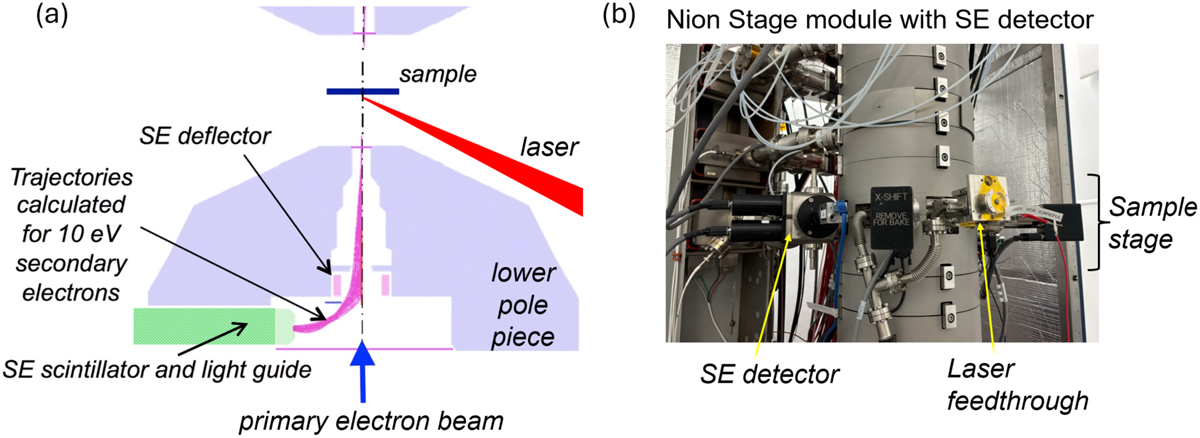

Secondary electron (SE) detector in the Nion HERMES. (a) Schematic showing the SE detector in the lower polepiece of the objective lens, with deflectors guiding low energy secondary electrons towards a scintillator. (b) Photograph of the SE detector and laser illumination system incorporated into the sample stage module of a Nion HERMES.
