Fig. 4
Download original image

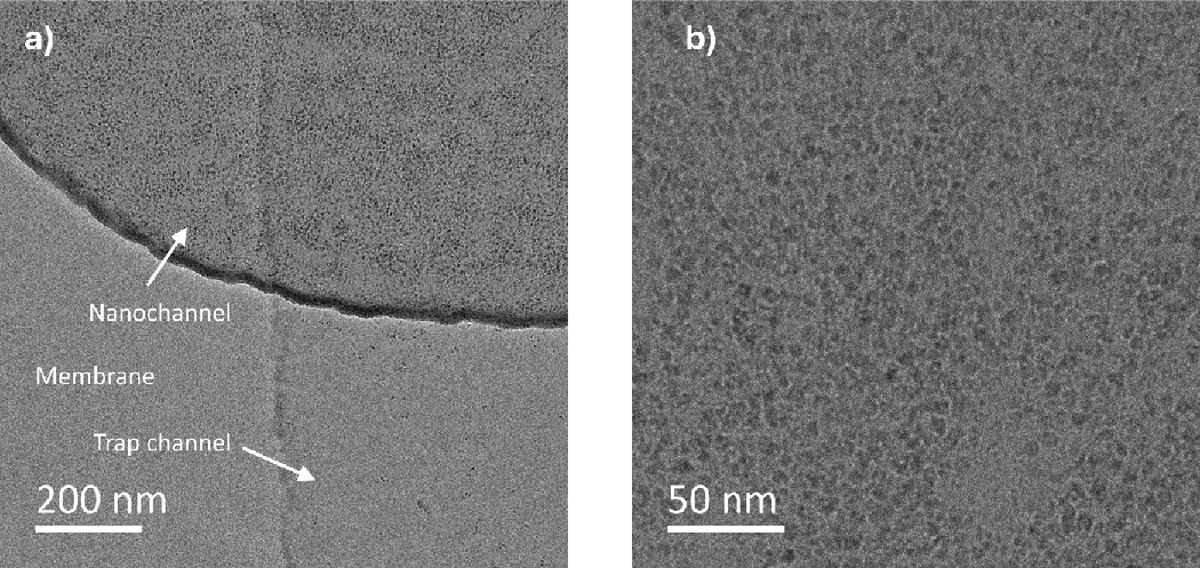

Trapping of Ferritin with iron oxide core. a) Ferritin particles with an iron oxide core are trapped both before and inside the trap. b) The ferritin particles are expected to be 12 nm in diameter, with an 8 nm inner iron oxide core.
