Fig. 5
Download original image

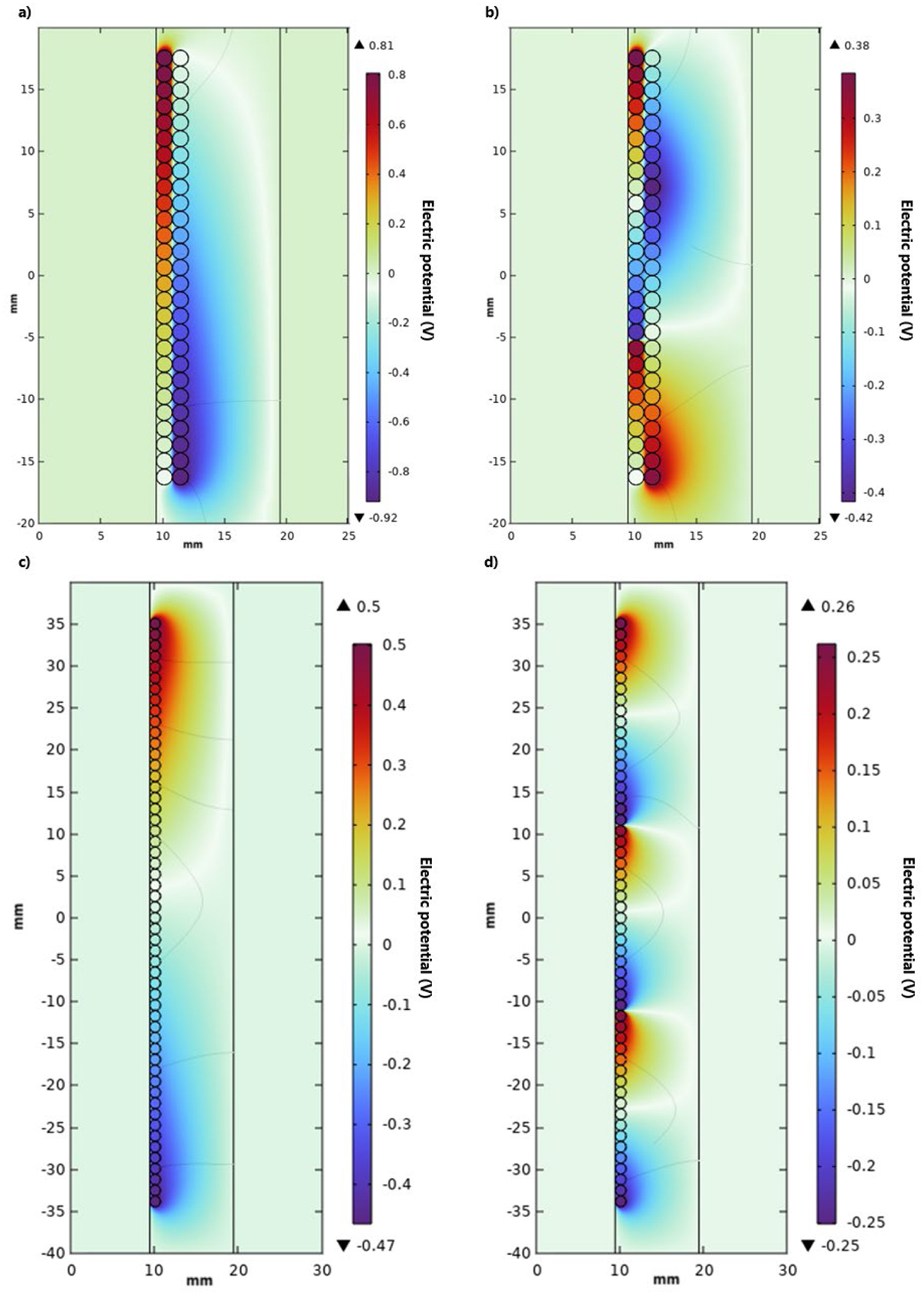

Voltage distribution between turns of a coil. Voltage time rise voltage fixed at 0.5V/ns. Standard coil two rows powered with 1V (a); segmented coil two rows powered with 0.33V (b); standard coil one rows powered with 1V (c); segmented coil one rows powered with 0.33V (d).
