Fig. 7


Download original image

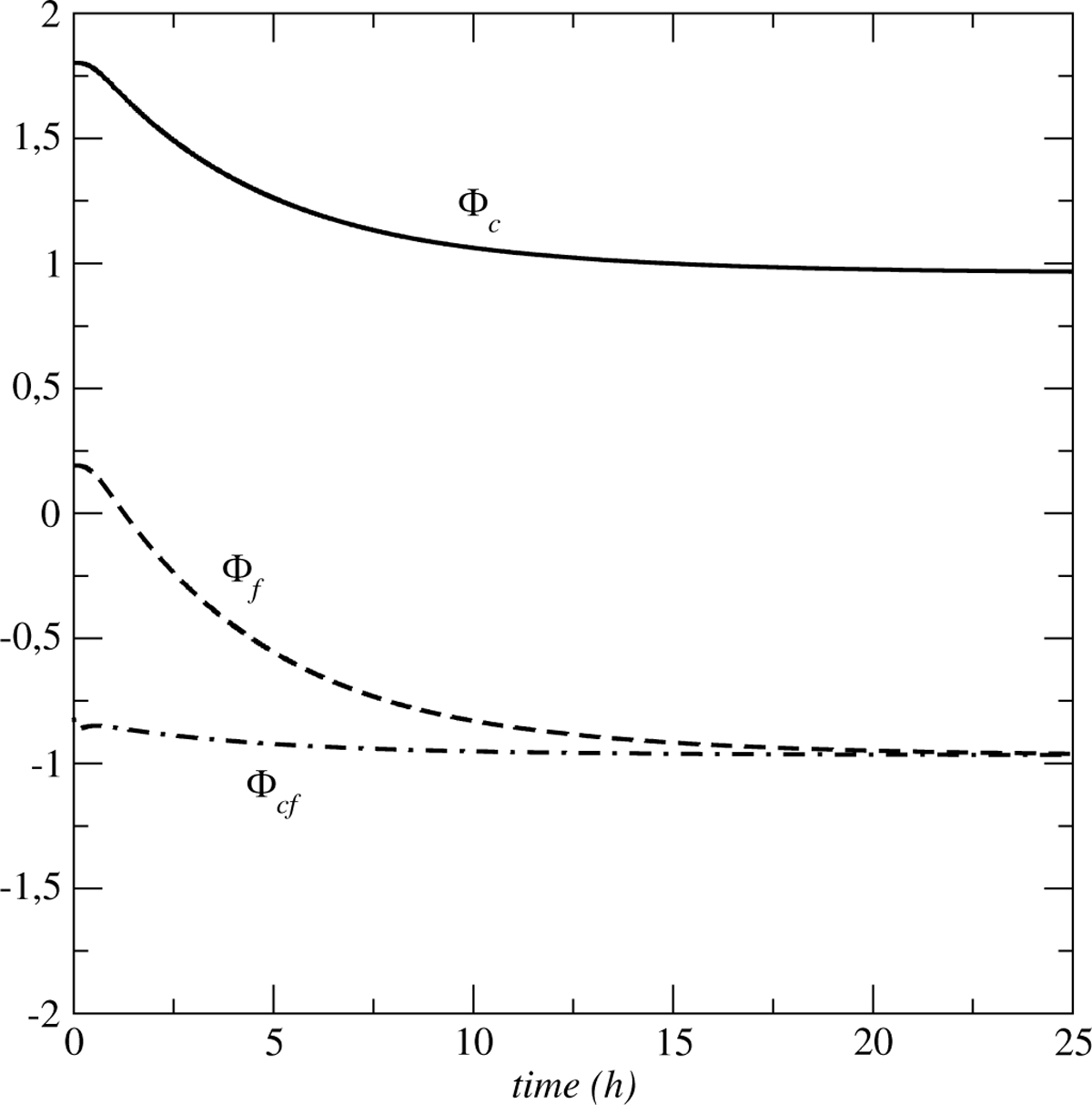

Evolution of mass flow rates crossing the coarse medium inlet (Φc), entering (Φf > 0) or leaving (Φf < 0) the medium at the fine medium inlet or crossing the interface between the two media (Φcf with Φcf < 0 when the net transfer is from the coarse to the fine medium). Note that all mass transfer rates have been made dimensionless by dividing each mass flow rate by Φref = ρV0C0Wc.
