Fig. A.1
Download original image

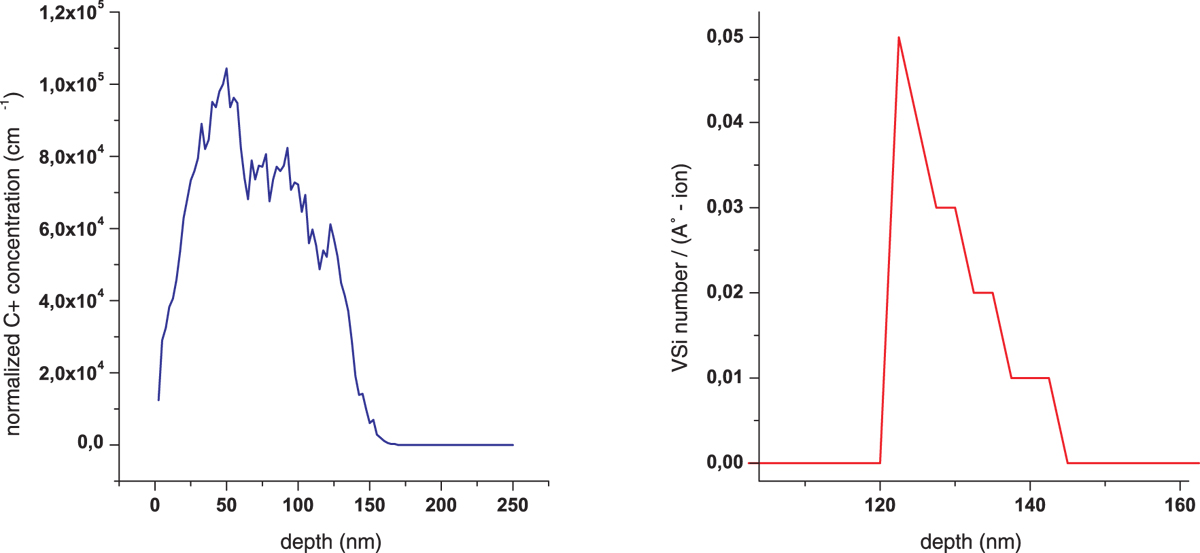

Implanted carbon ions profile (left) as predicted by the SRIM software and assuming 30 keV C+ ions implantation (with 7 degree of tilt) in a trilayer made of ZnO (60 nm), SiO2 (60 nm) and 4H-SiC (infinity); silicon vacancy concentration profile in 4H-SiC (right).
