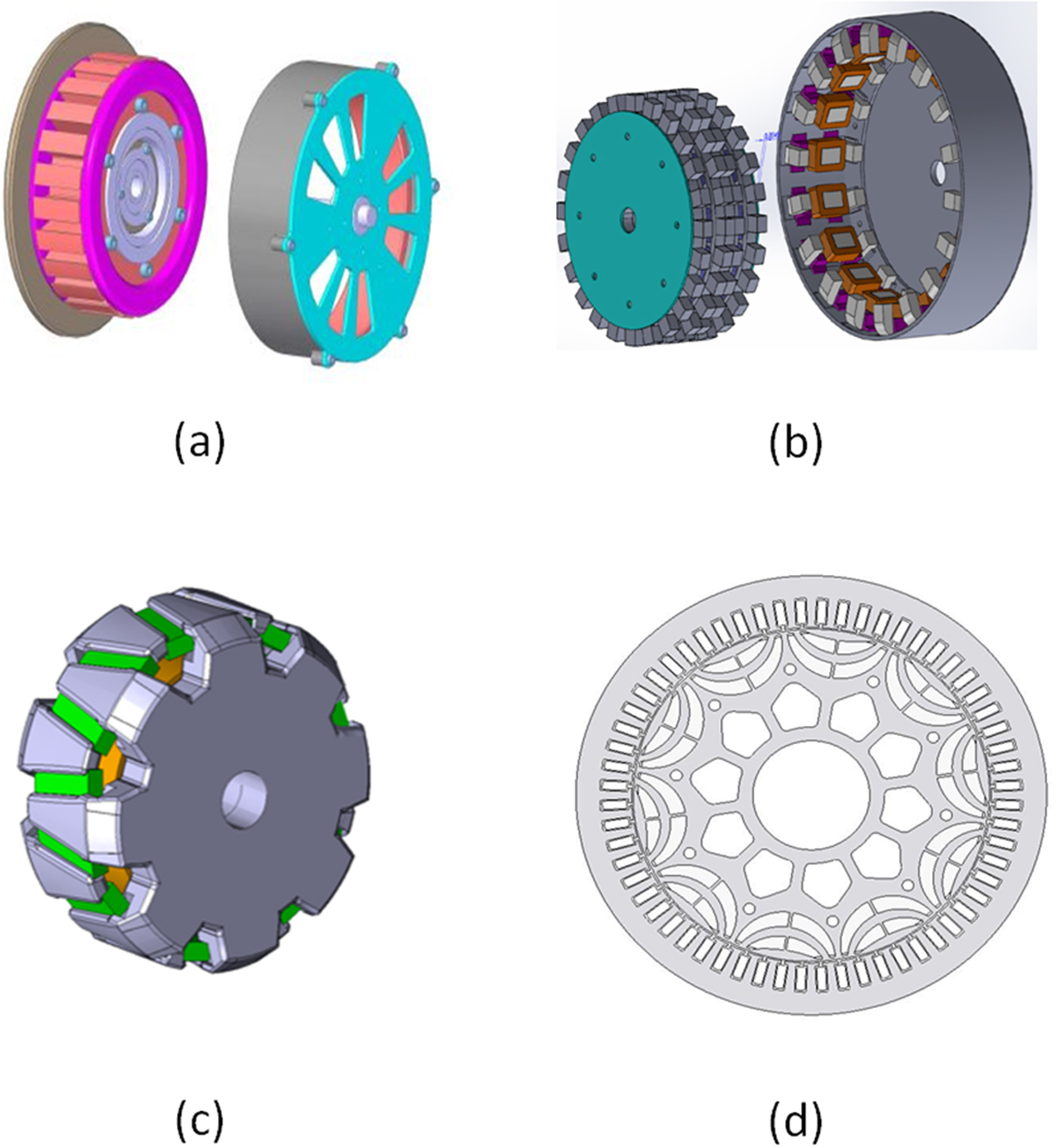

Fig. 7

(a) Outer rotor SPM motor with Halbach Ring, magnet is highlighted in orange color; (b) 3D flux hybrid motor with modular stator, magnets are placed in rotor between gear-shape iron plates; (c) magnet assisted claw pole motor (rotor), magnets are highlighted in green color; (d) IPMSM with direct magnet injection molding, magnets are “boomerang” shape.
