Fig. 8


Download original image

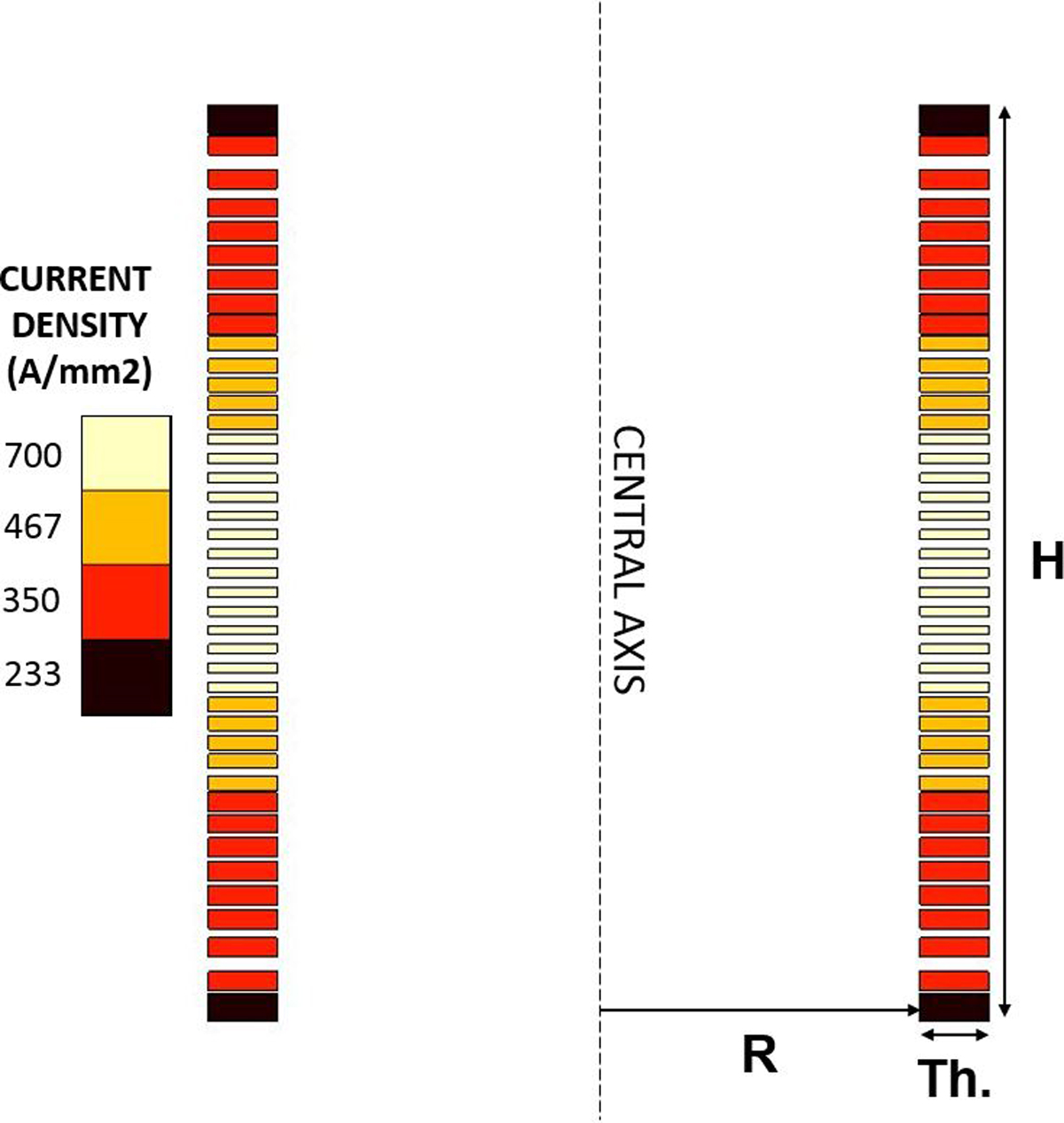

Cross section view of the solenoid. As the tapes are wider, the current density is lower at solenoid extremities. R = 135 mm, TH = 29 mm, H = 384 mm.
