Fig. 6


Download original image

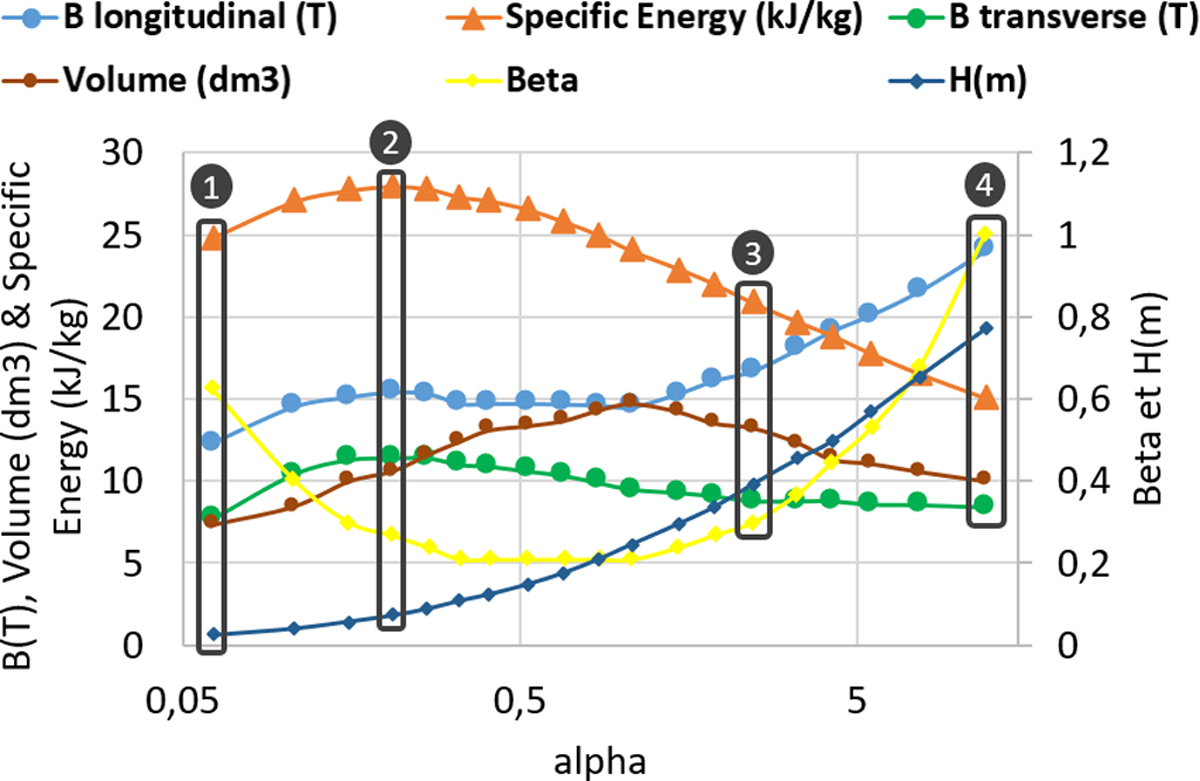

Set of topological solutions respecting E = 1 MJ, σ = 500 MPa, and J = 600 A/mm2 for different values of aspect ratio α. Solutions at the left are corresponding to flat solenoids, and solutions on the right are very long solenoids. B longitudinal is the maximum B field in mid-plan of the coil and B transverse is the maximum radial B field (at the top and middle of coil’s section). H is the height.
