Fig. 14


Download original image

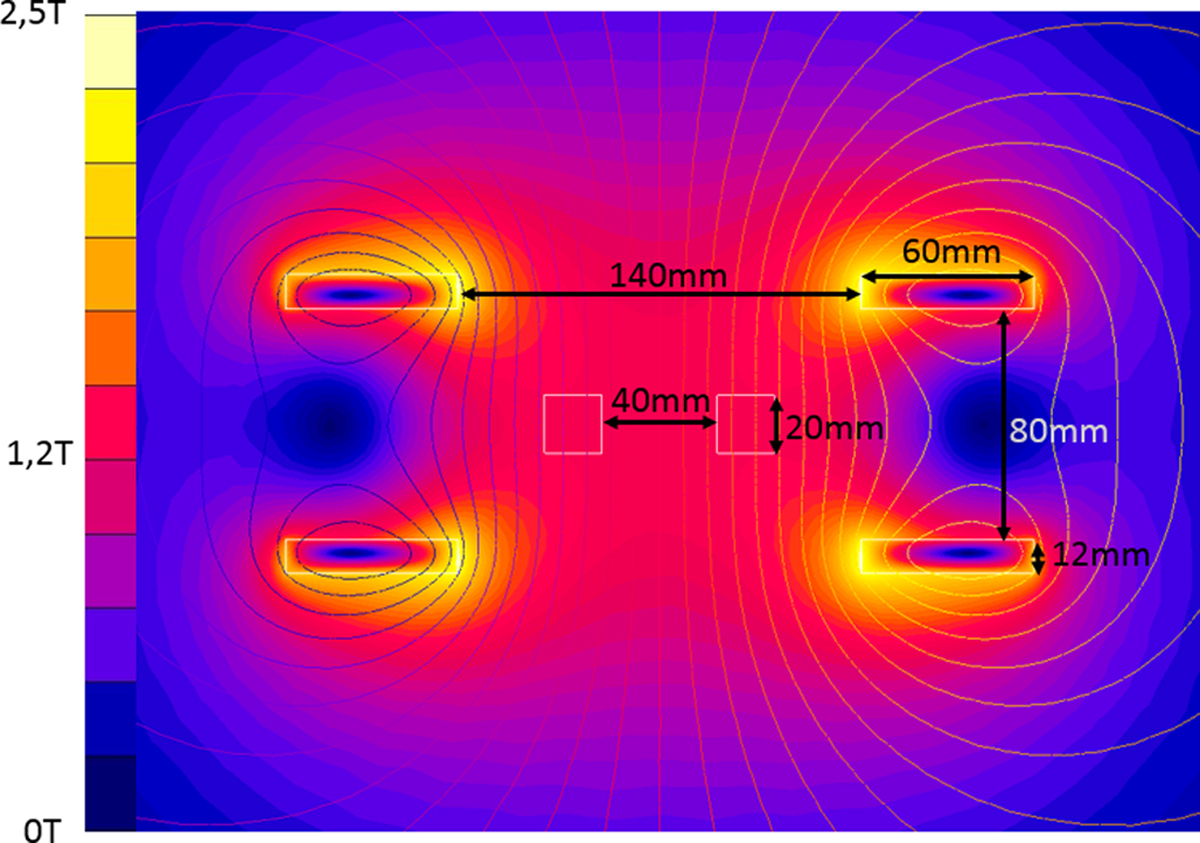

Cross section view of induction field when the coil is charged, just before launching. The field between the rails is then 1.2 T. At the beginning of the launch, the field rises until 1.4 T (additional field generated by current the rails).
